Microsurgical robot

BrainsightVetLogoWeb

Click here for more information: info@rogue-research.com

15 years ago we pioneered the introduction of frameless stereotaxy for modern veterinary surgery with the introduction of Brainsight Vet.

Vet Robot

The general purpose of the robot is to be able to hold and manipulate tools in the surgical space and to be able to do so with very high accuracy. Typically, we wish to guide the tools from outside the head to specific locations within the head (e.g. injection needle) along a specific path in small animal such as mice, rats and marmoset.

RobotStereotaxic

Brainsight’s Interface

Brainsight’s powerful yet easy to use interface generates 3D views of your animal’s images. The images can be used to pick your target prior to surgery and guides your tool to the target along that path in surgery. For this reason, a MRI or CT is required prior to the surgical robot procedure.

The anatomical images of the subject’s head defines a coordinate space onto which other data (e.g. functional scans, atlases) can be overlaid. The robot defines a coordinate space for itself (i.e., the real world, or subject’s coordinate space) as well as coordinate spaces to describe the robot’s tool holder (the tool angle) and the coordinate system for the tool tip and orientation.

BrainsightNavigation

Stereotaxic placement

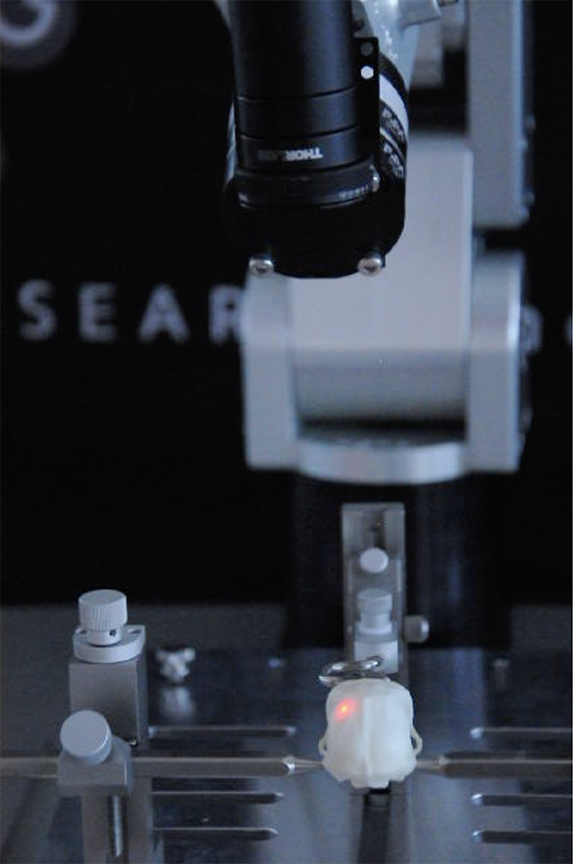

The animal is placed in a traditional stereotaxic apparatus. A laser attached to the end of the robotic arm is used to co-register the animal with its scan.

StereotaxicSurgery

Brainsightlaser

Registration

Stereo-imaging cameras

Both the tool calibration and the subject-image registration requires the ability to determine the position of landmarks in the subject coordinate space. This is accomplished using stereo video cameras that are carefully placed and calibrated such that identifying a point in both camera views yields the 3D coordinate in the subject space. This can be used, for example, to identify the tip of a tool attached to the robot, or using a laser pointer, features on the subject’s skull. Ultimately attaining a precision of at least 200μm at target site in the brain.

StereoCamera

Brainsight Vet Robot includes :

  • Brainsight software
  • Apple iMac computer and interface hardware
  • High precision 6-axis robot with universal tool mounts
  • Stereo camera system for touch-free registration
  • Surgical tools to simplify common procedures
